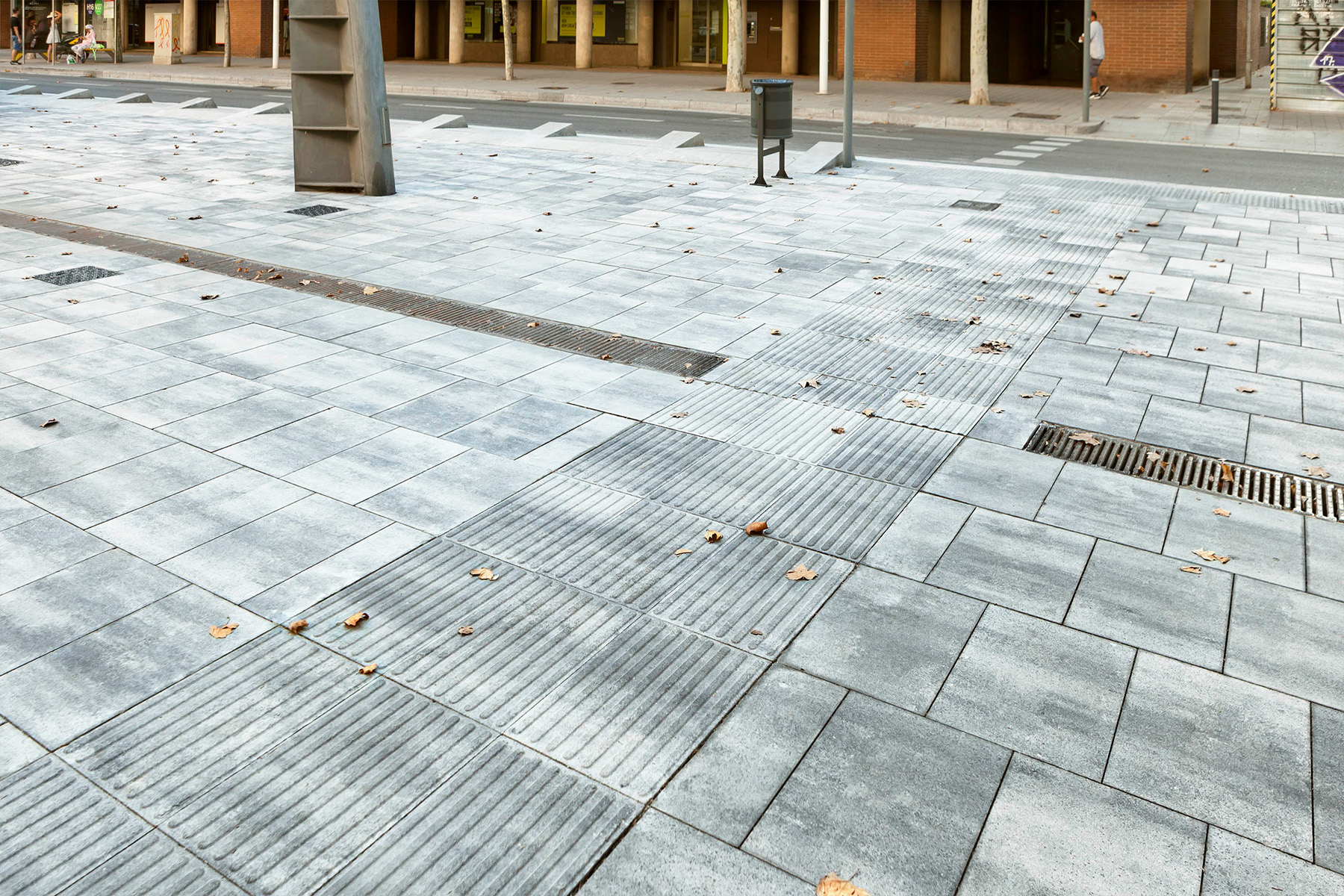

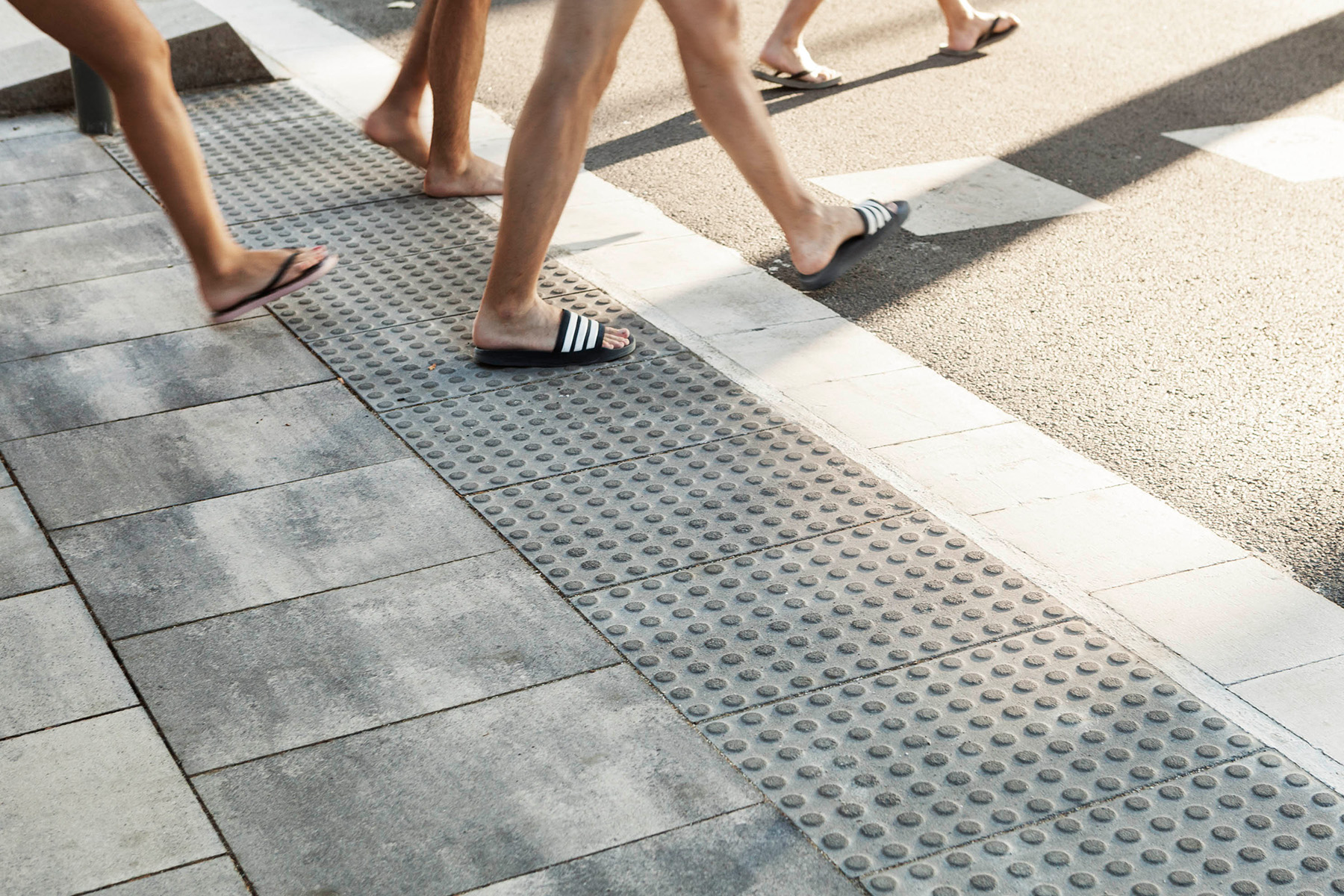

Barcelona
Author: Miquel Espinet | Antoni Ubach
Llosa vulcano® Tactile
Photography: Uatxut

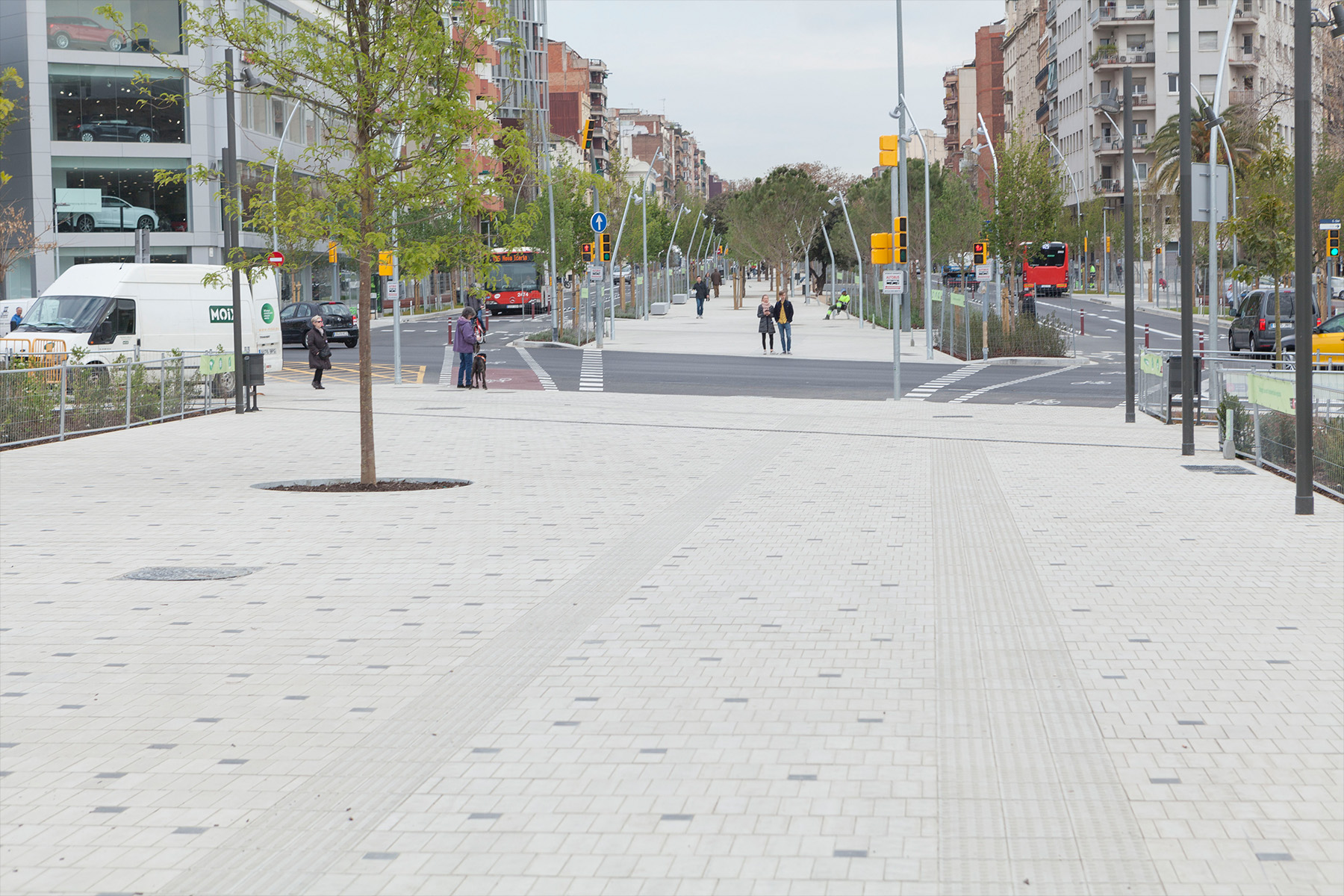

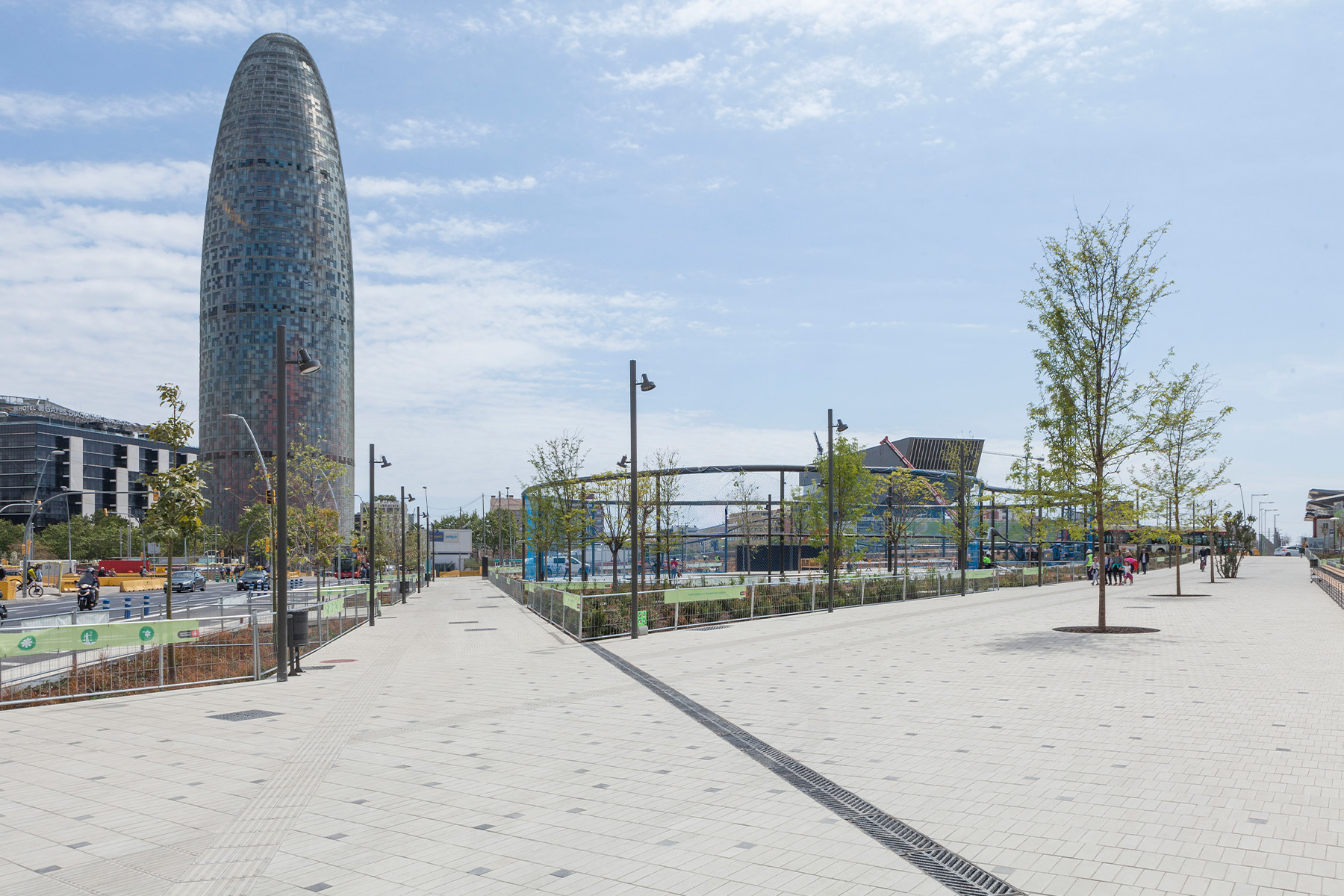

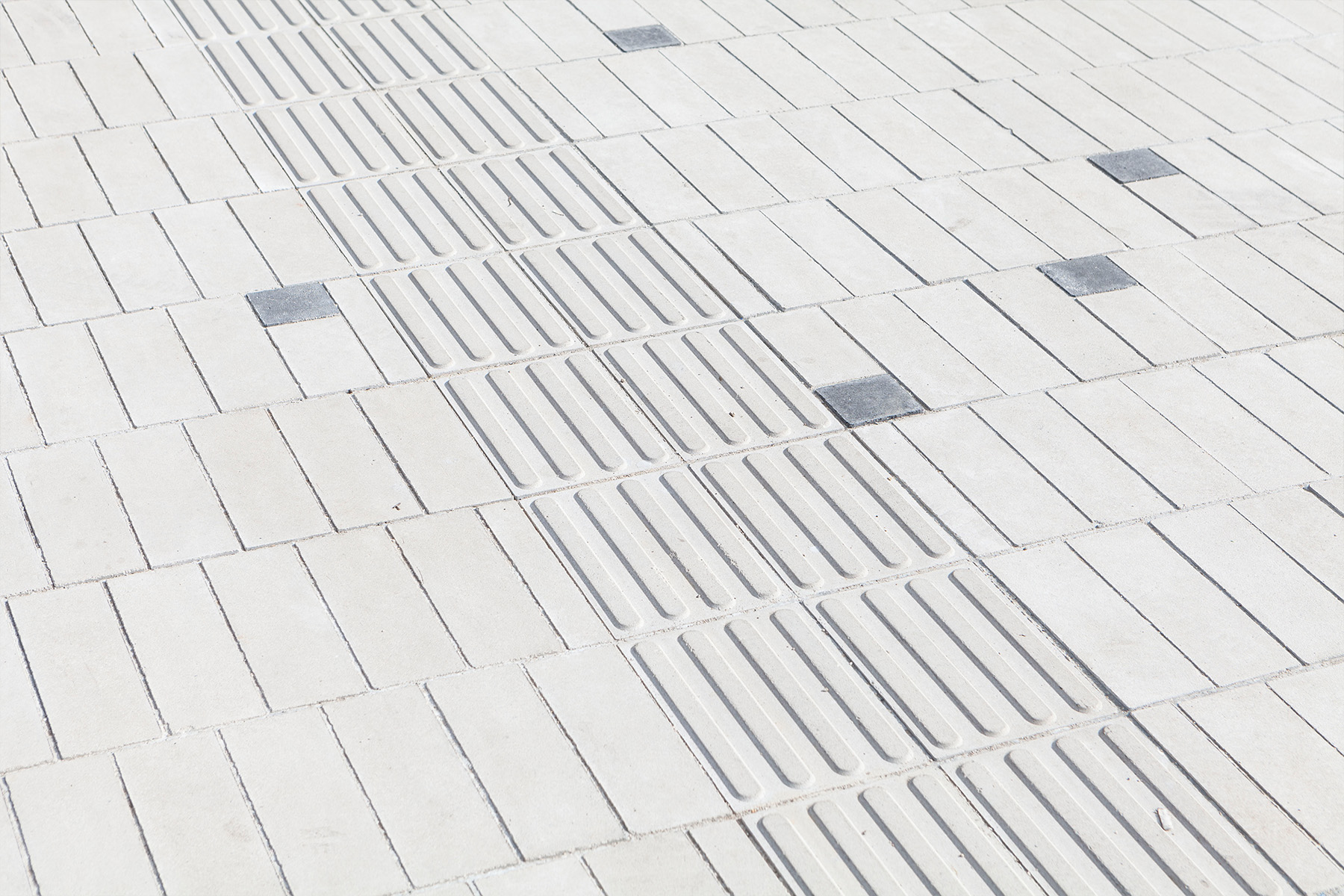

Barcelona
Author: UTE Agence Ter & Ana Coello de Llobet
Llosa Vulcano® Tactile

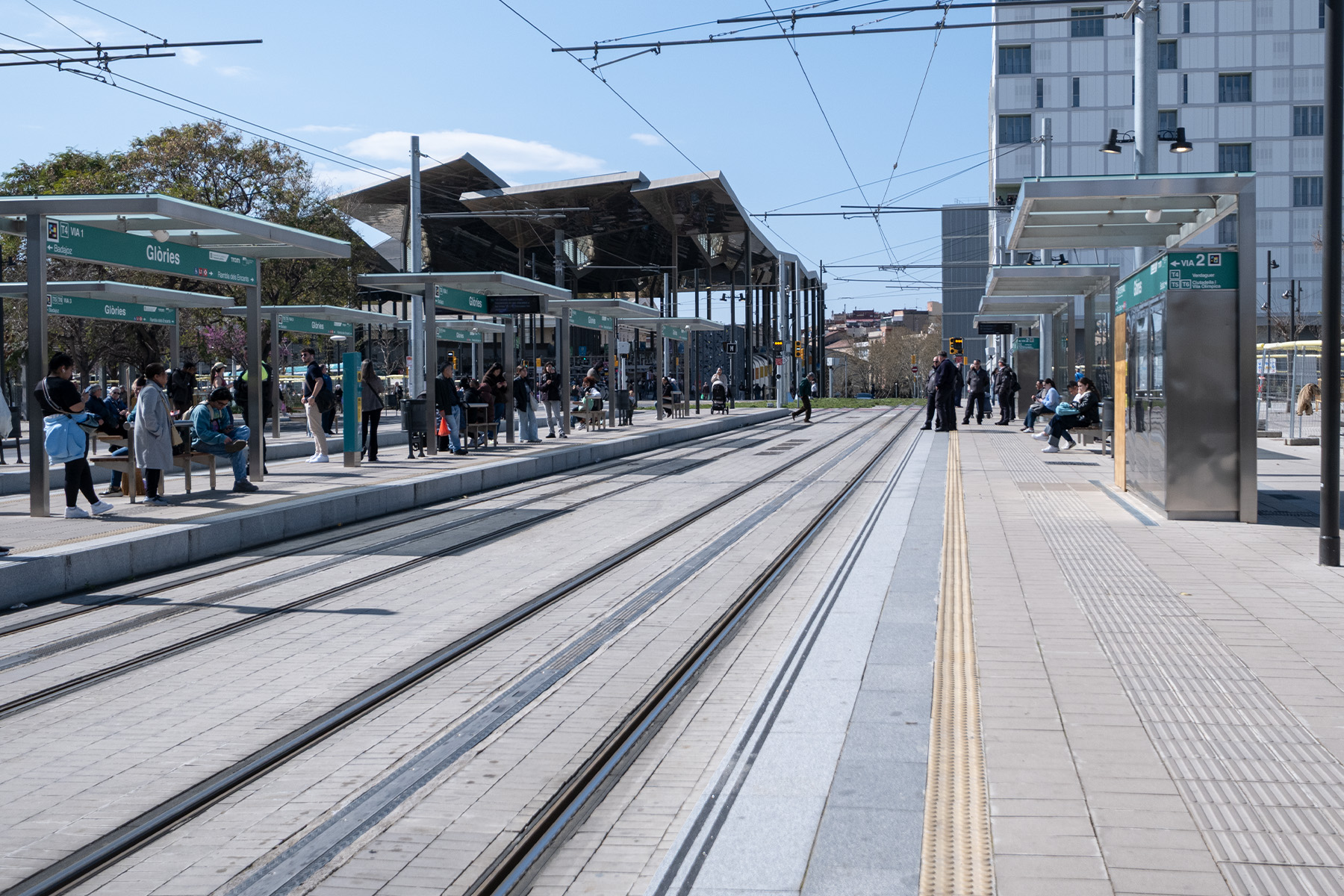

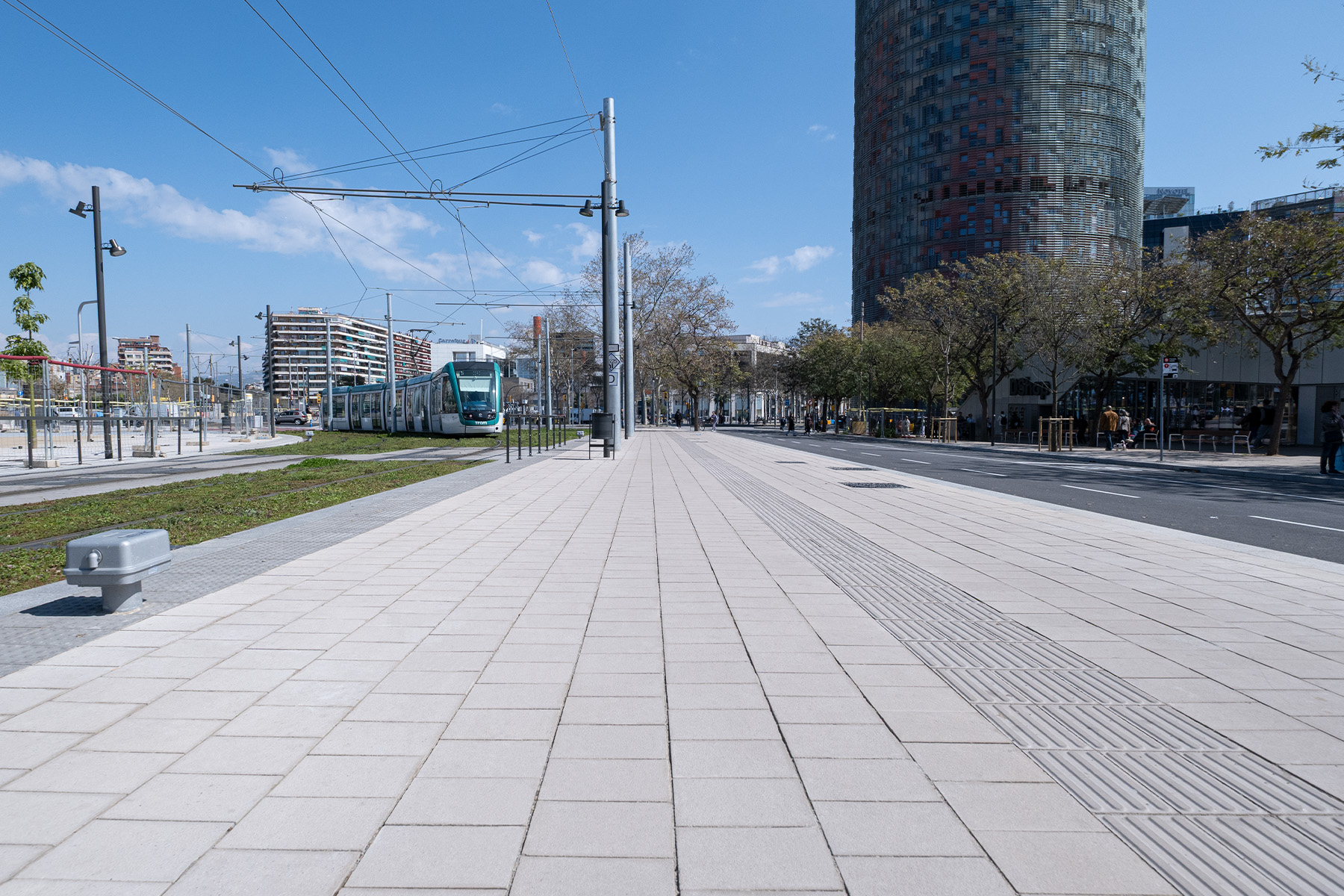

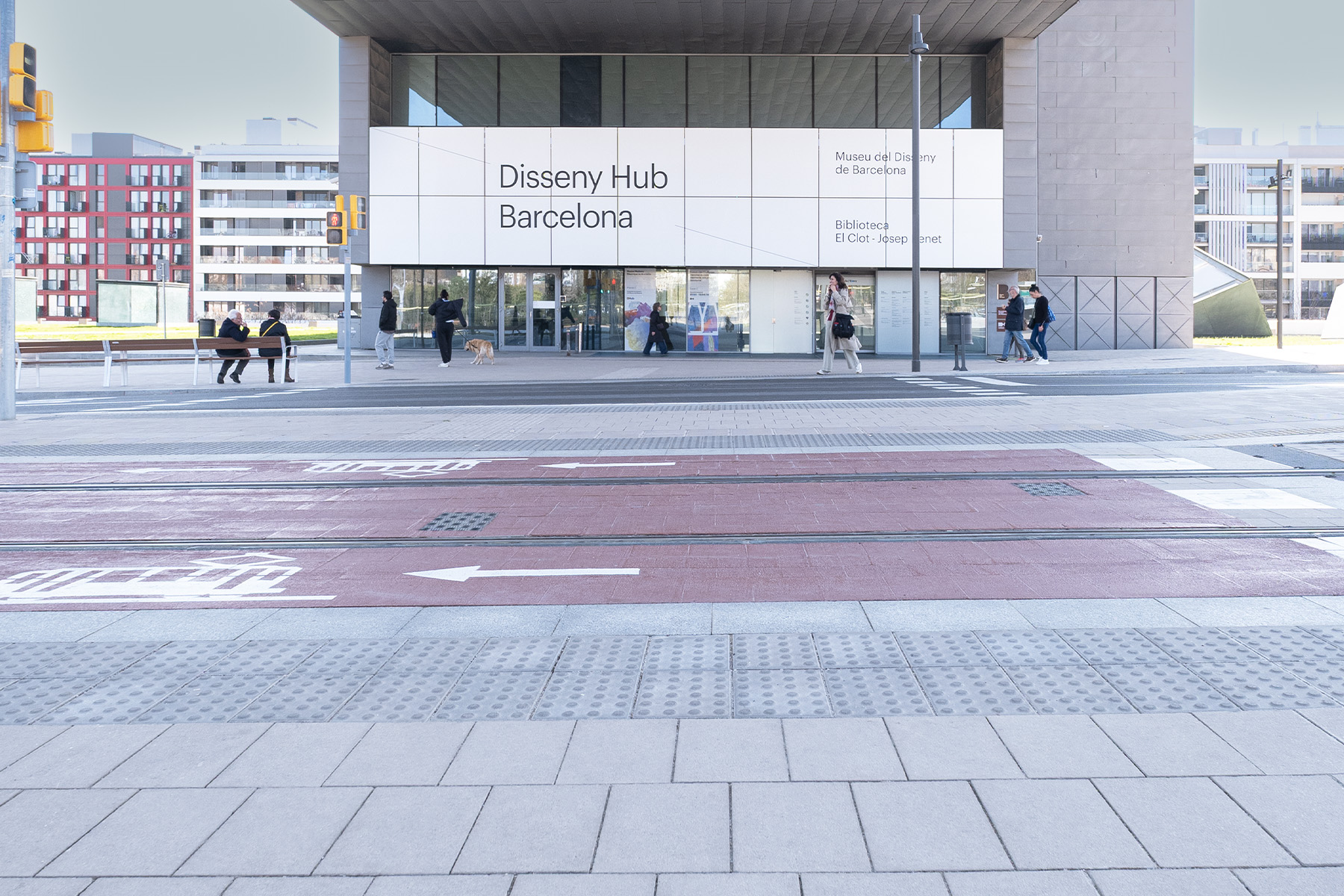

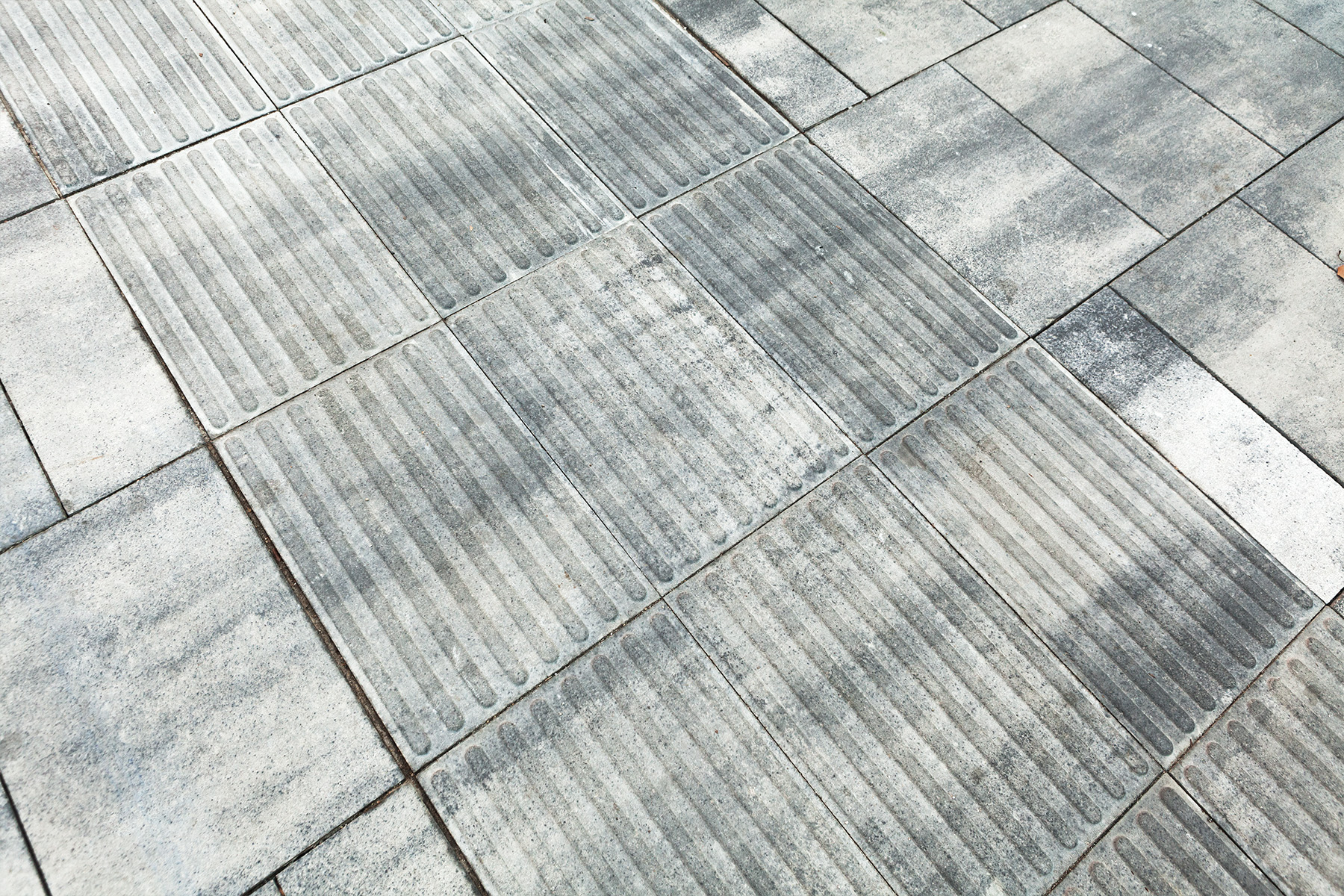

Barcelona
Author: UTE Agence Ter & Ana Coello de Llobet
Llosa vulcano®, Tactile crossing, Tactile warning y Wetcast®
Warning
buttons
Crossing
longitudinal bands
Tactile Paving Stones
Tactile warning & tactile crossing
The purpose of tactile paving stones is to provide clear and unambiguous sensory guidance for blind users or those with significant visual or cognitive impairments.
Tactile Paving Stones
Order VIV/561/2010, of February 1, which develops the technical document on basic accessibility and non-discrimination conditions for access to and use of urban public spaces, establishes the criteria to be followed for the installation of tactile paving stones.
Characteristics

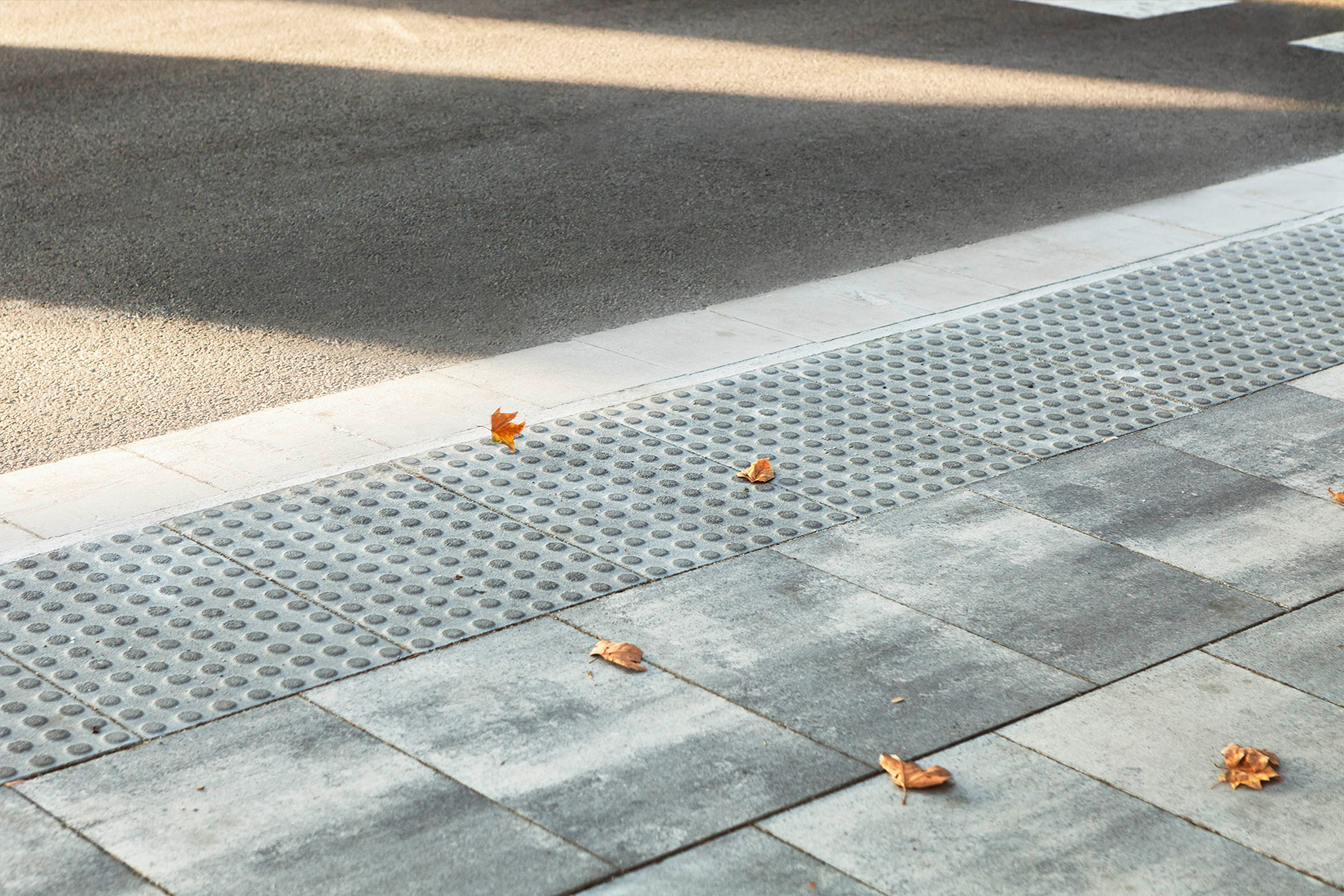

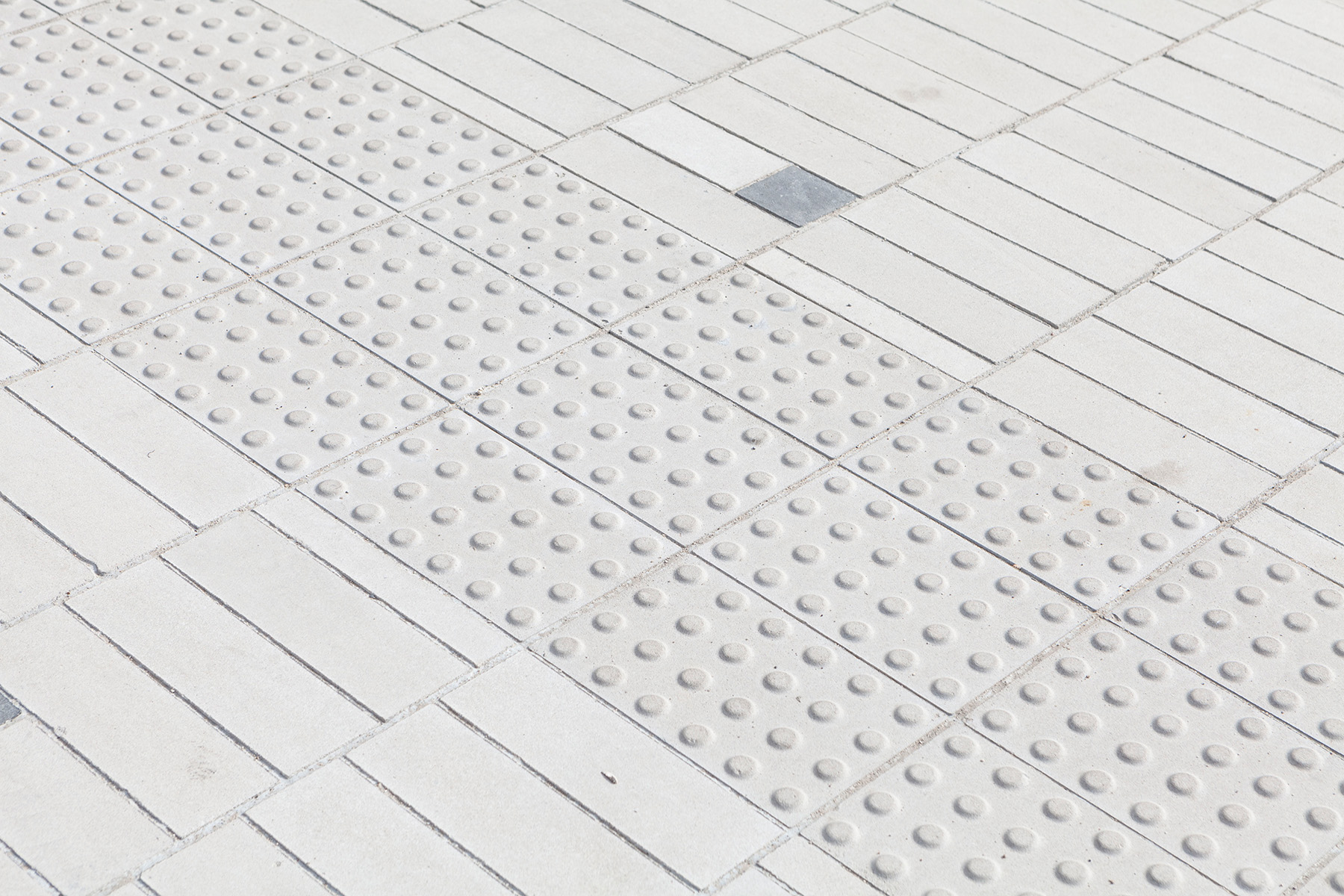

Tactile warning
1. Identifies risks and gives warnings.
2. The buttons on the “Tactile Warning” piece make it easy to identify kerbs and intersections.
3. It helps pedestrians identify potential risks and warns them to proceed with caution.
Characteristics
Tactile crossing
1. A guiding paving stone. Steps to follow.
2. The raised longitudinal bands of the “Tactile Crossing” piece offer people with blindness or vision problems a physical alert.
3. Can be used in public spaces as a directional guide to help pedestrians avoid hazards and obstructions, and to identify crossing points in transit areas.
4. The bands on the surface indicate which way to go.
Tactile Paving Stones
Tactile paving stones come in all of the sizes, thicknesses, colors, and finishes available in the Breinco line of paving stones.
Llosa vulcano
20 x 20 x 4 cm
0.5 mm spacers
20 x 20 x 8 cm
3 mm spacers
60 x 40 x 5 cm
0.5 mm spacers
VS5®
30 x 20 x 10 cm
3 mm spacers
30 x 30 x 10 cm
3 mm spacers
Panot S.XXI
Panot S.XXI Tactile crossing round end
20 x 20 x 4 cm
Without spacers
Panot S.XXI Tactile crossing round end
20 x 20 x 8 cm
Without spacers
Panot S.XXI Tactile crossing straight end
20 x 20 x 4 cm
Without spacers
Panot S.XXI Tactile crossing straight end
20 x 20 x 8 cm
Without spacers
Panot S.XXI Tactile warning 16
20 x 20 x 4 cm
Without spacers
Panot S.XXI Tactile warning 16
20 x 20 x 8 cm
Without spacers
Panot S.XXI Tactile warning 50
20 x 20 x 4 cm
Without spacers
Panot S.XXI Tactile warning 50
20 x 20 x 8 cm
Without spacers
